Guide Rail Bracket Set
Designed locally by Dash-Board
Rigorously tested and inspected.
Precision Tool for Your Workshop
Refined. Accurate. Reliable.
The Dash-Board Guide Rail Bracket Set is our world-renowned rail hinge accessory. It is designed without compromise to be robust and accurate. Take your track saw, Domino, router, or other rail guide tool to the next level.
Universal Compatibility with Major Guide Rail Systems
**Compatible with all major rail brands that cut on the right side of the guide rail.**
High-Performance Features for Enhanced Workshop Efficiency
Key Features
- Optimized for strength, minimized weight, and maximized cut capacity

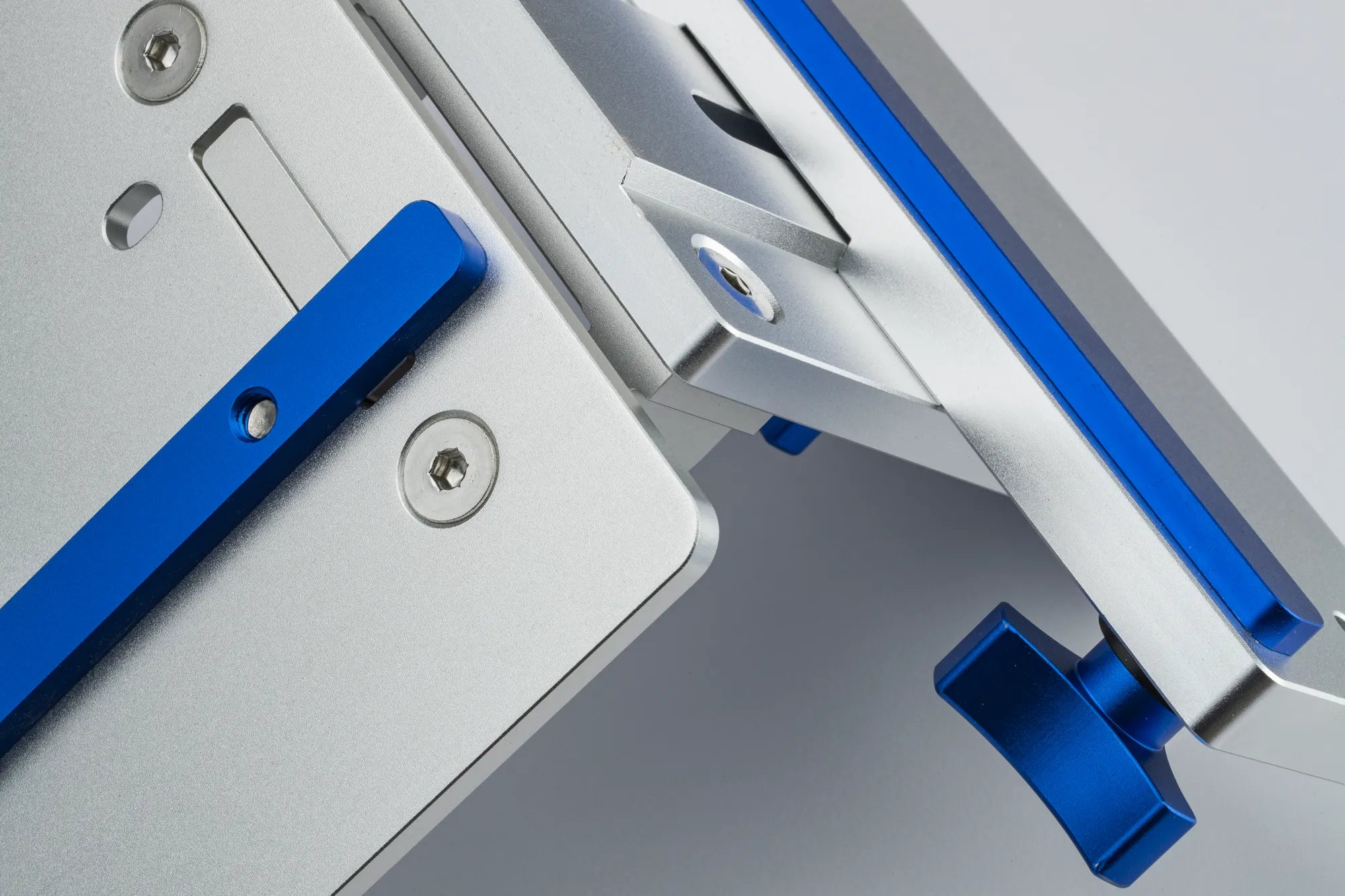

- Smooth pivot mechanism
- Comfortable all-metal knobs

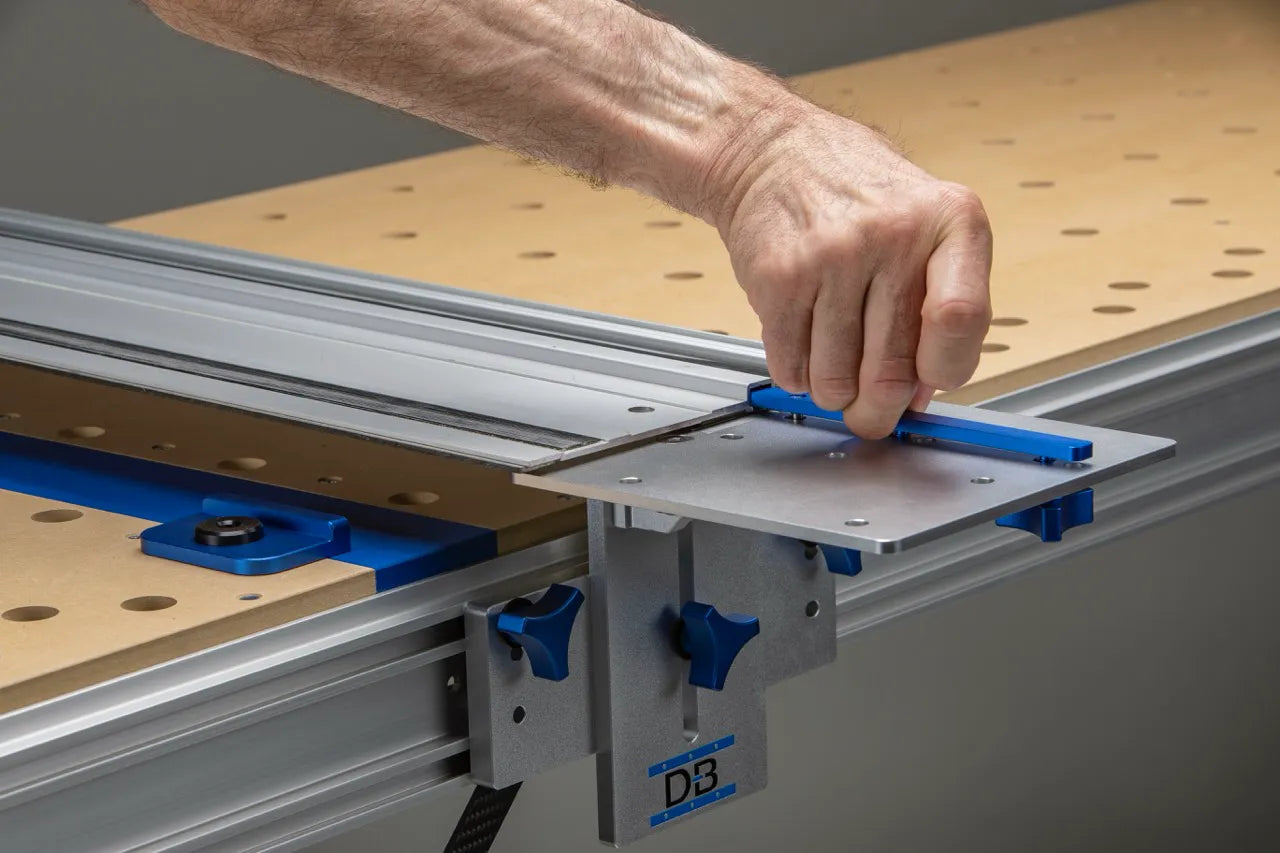

- Integrated SpiRail Dogs simplify rail alignment

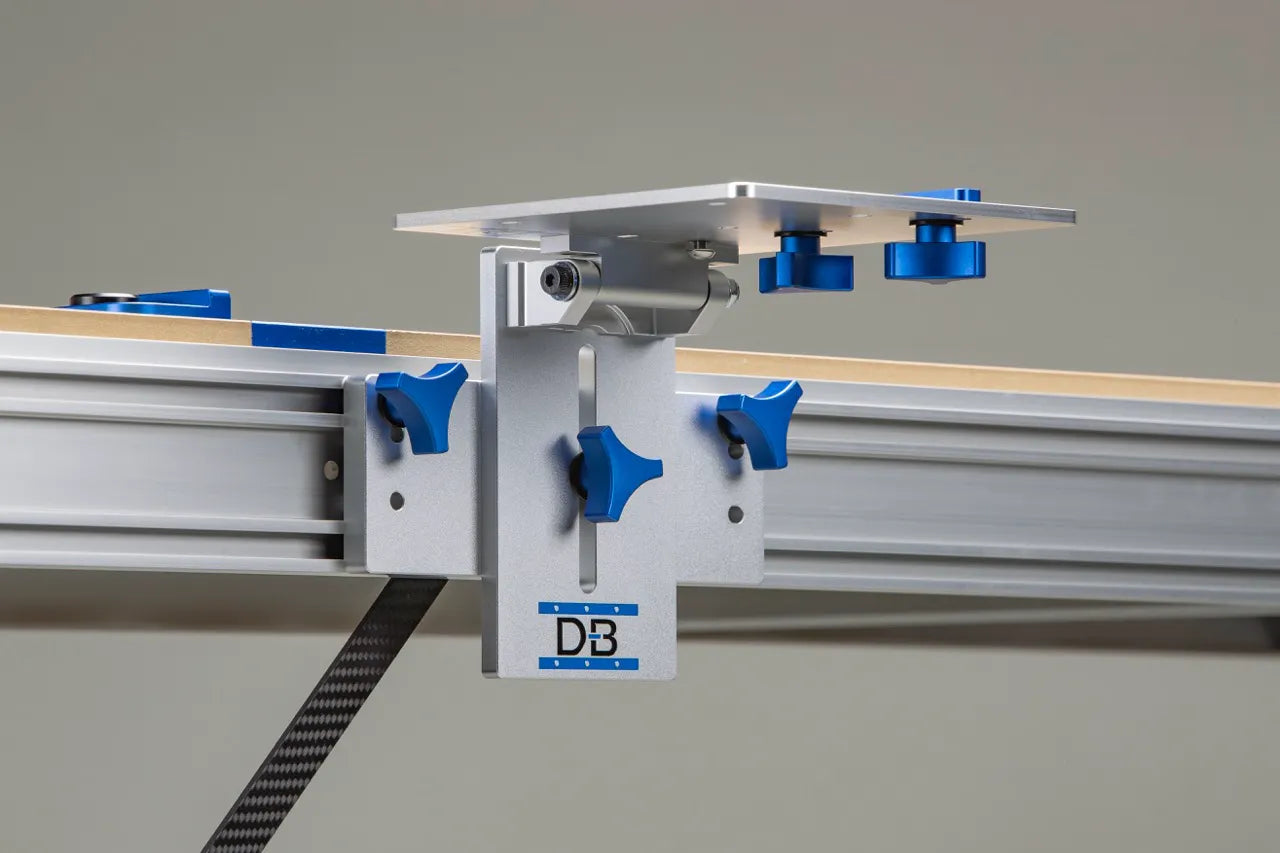

- T-bar mounting ensures quicker, easier, more solid attachment
Expand Your Cutting Capacity with Reliable Precision

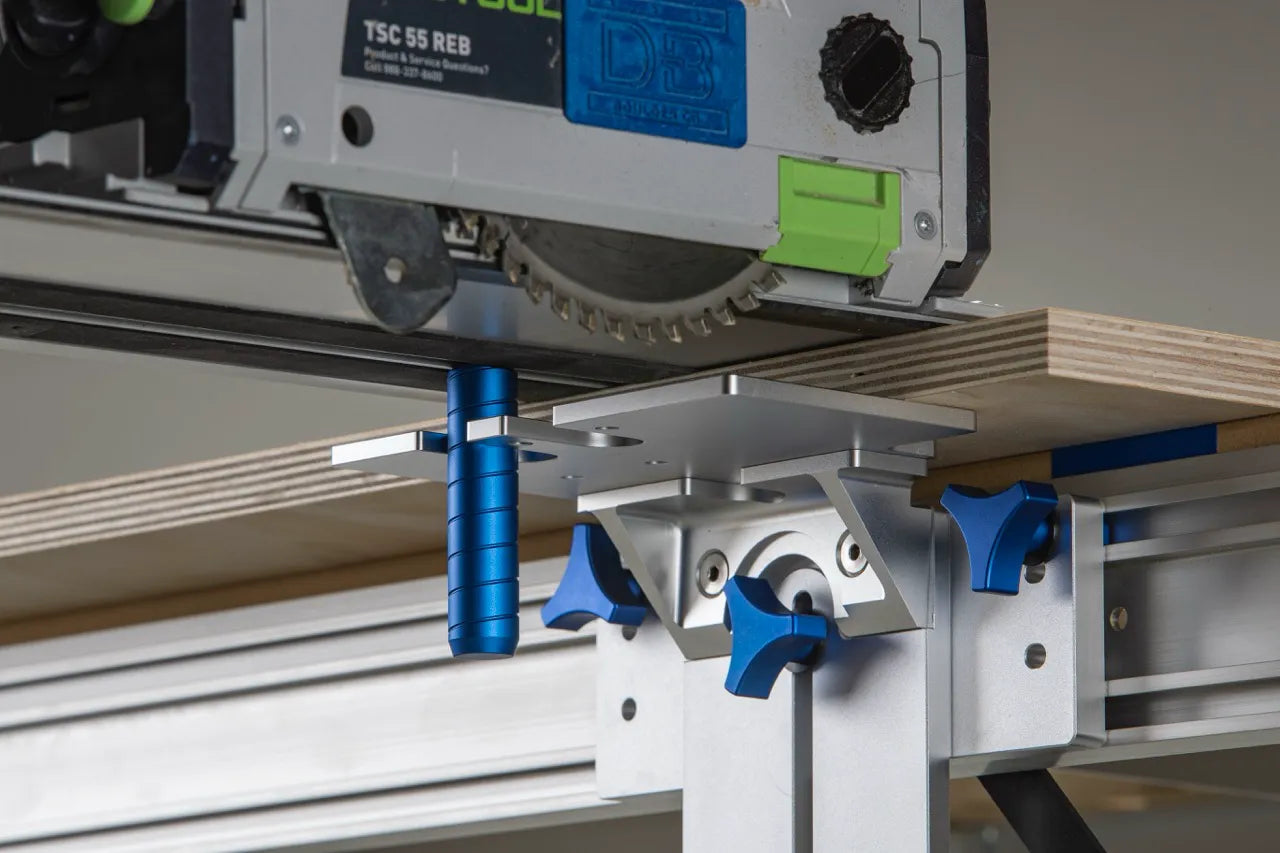

Maximum cutting height of 2.9” (74mm).
Tool-Free Installation for Effortless Setup
Our Guide Rail Brackets embody Dash-Board’s commitment to tool-less installation and adjustment.

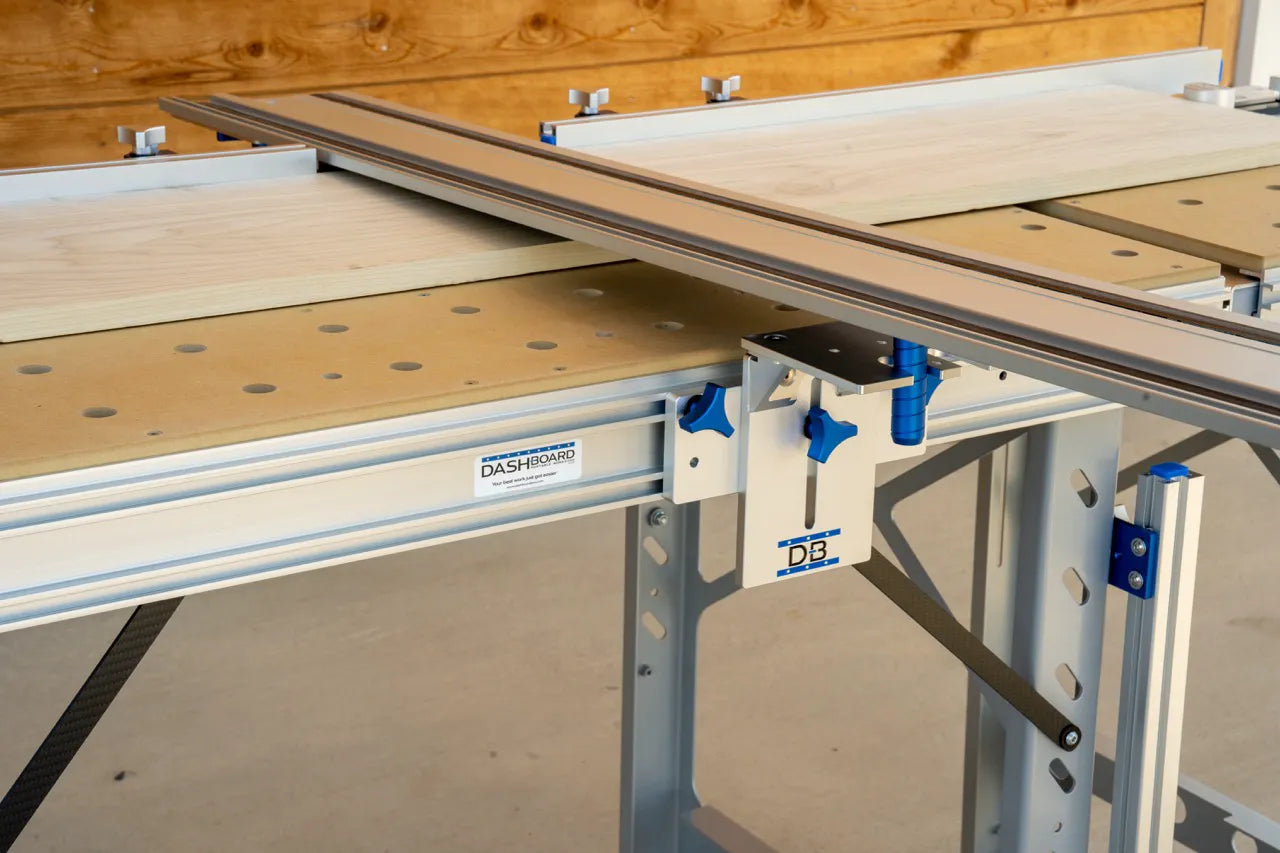

Space-Saving Design for an Organized Workbench
Brackets drop conveniently below table height when not in use and don’t take up space on your bench top.
No-Fuss
- Leave frustration behind with our intuitive products
- Brackets drop conveniently below table height when not in use and don’t take up space on your bench top
Product Details

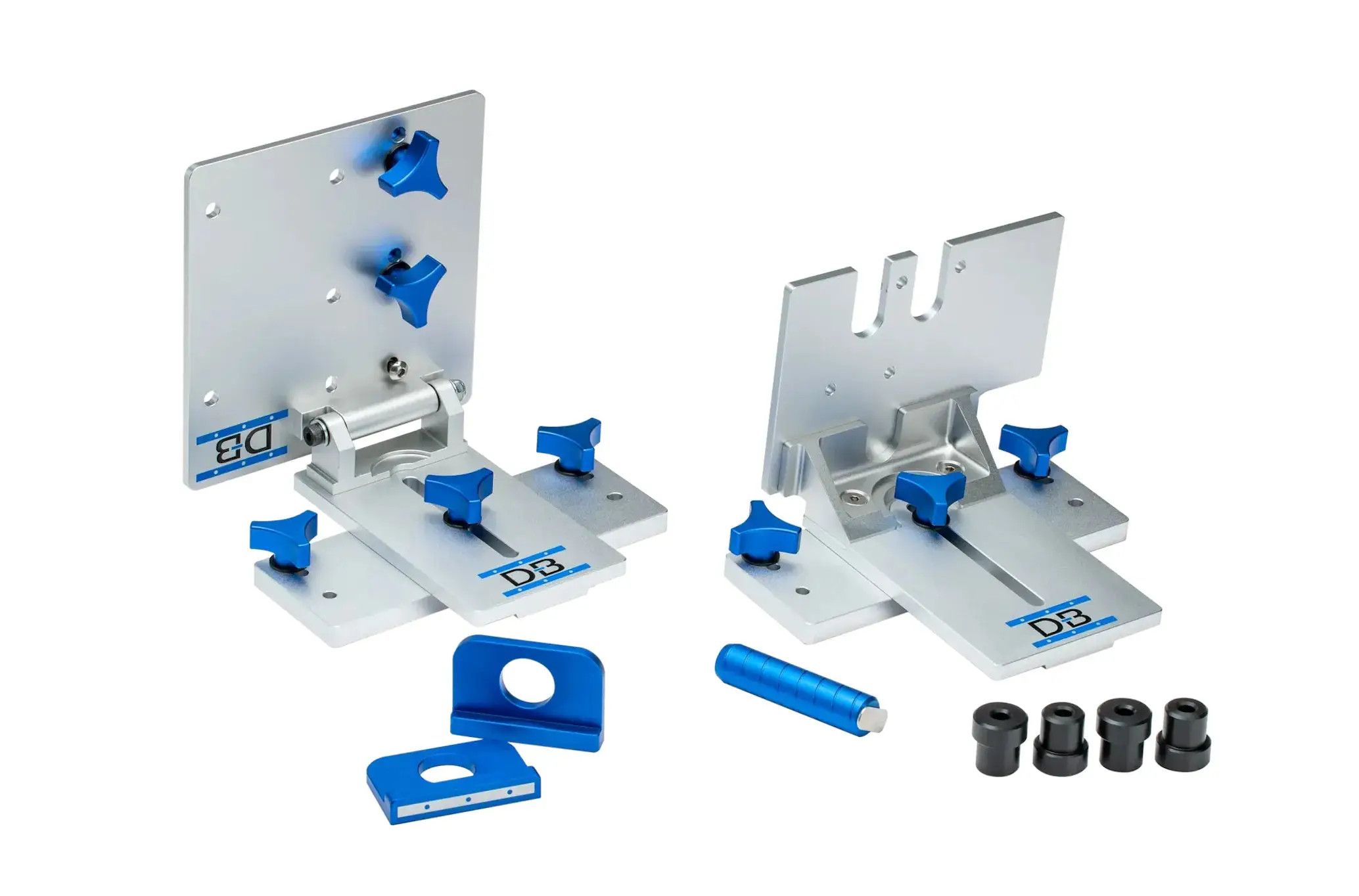

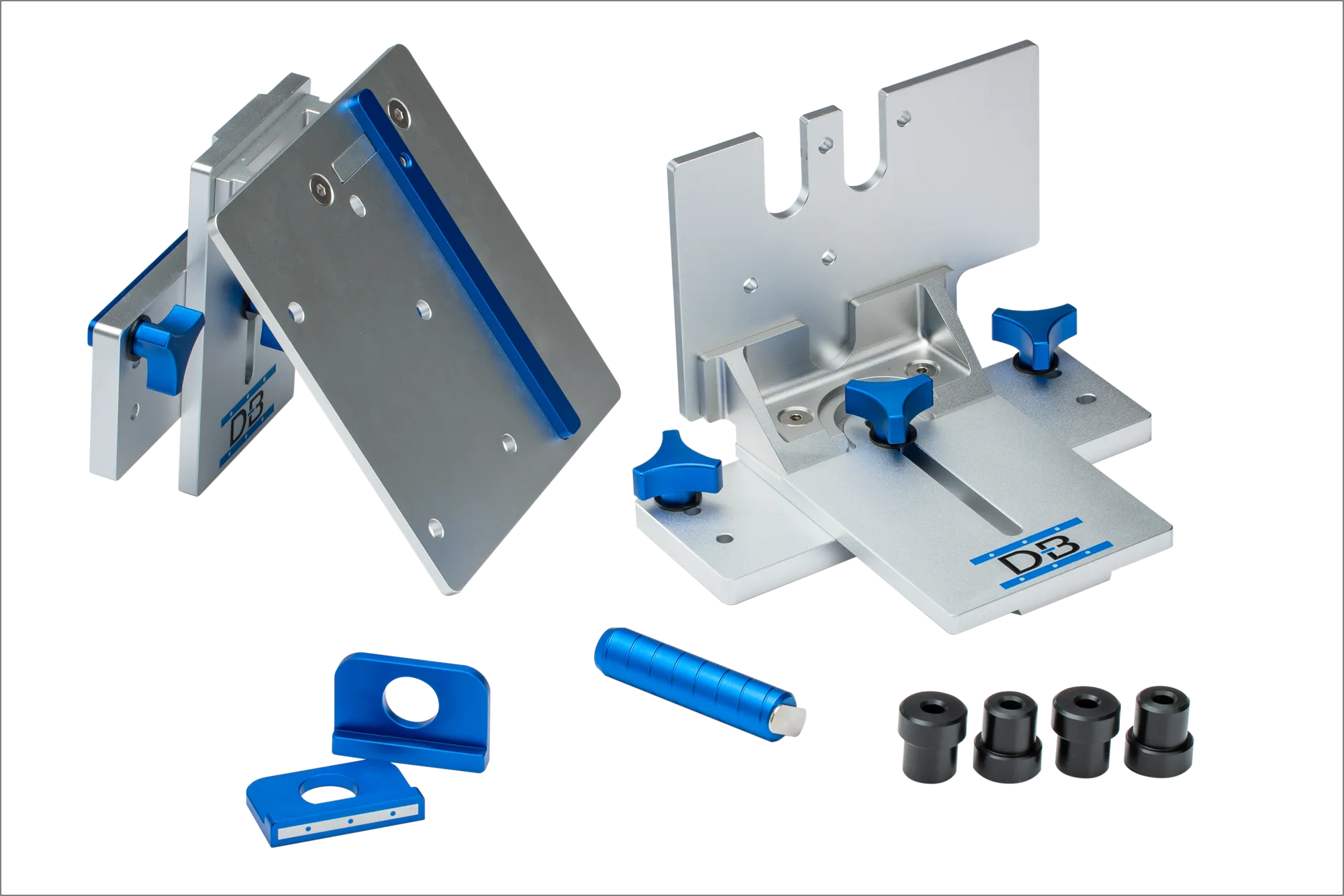

What’s in the box:
- Front and Rear Brackets
- 1 SpiRail Dog that attaches to any guide rail’s bottom slot
- 2 Universal Setup Blocks to position the rail so your saw kerf will not cross a line of dog holes
- 4 Bench Dogs - Medium (1/2")for 20mm holes, which integrate with the USBs for a simple and effective setup process on your workbench top
The Guide Rail Brackets can be used with all major guide rail brands
Product Safety:
- Beware sharp corners
- Be mindful of pinch points
- Secure all hardware before use to avoid accidents or injury.
- Use appropriate lifting form to avoid injury
- Keep out of reach of children
- Workbenches and Outriggers not intended as standing platforms
- For safest operation please keep static loads below 300 lbs or 136 kg
- Disassembly or product alterations are not recommended
- Do not use products for uses other than intended
